IMPLANT PROTESIS DENTAL SL provides prosthetic solutions with compatible connections for different implant systems. The components manufactured and marketed by IPD SL are fully functional with the aforementioned systems. The mention of the implant system brands or typology is made purely for informative purposes and for proper identification of the appropriate dental implant with which the connection of the IPD component is compatible.
We supply the full IPD catalogue of compatible implant prosthetics manufactured in Europe. The Spanish leaders in dental implantology have created a range of innovative products that are compatible with existing implant systems currently in use around the world today.
Browse through IPD's compatibilities on the below to find what you're looking for. We've listed our bestselling components from each major system on the market. If the item you're looking for isn't listed on our website please send us an inquiry - we'll quickly get back to you with the correct price of anything in the IPD catalogue.

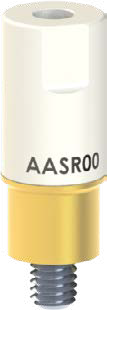

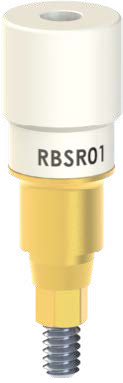

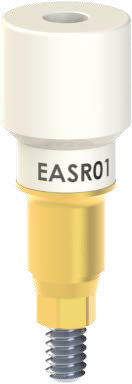

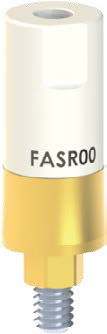

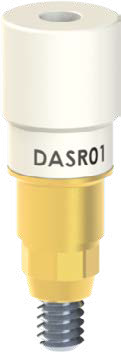

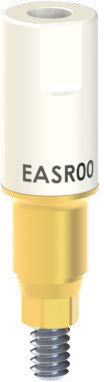

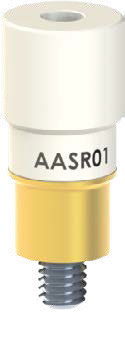

Description : Intra/extra-oral scanning abutment to locate the position of the implant in the mouth or model
Treatment : TiN: Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Material : Titanium Grade 5 + PEEK: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Engaging
NP ø3.5 H 10mm : IPD/AA-SN-00
H 15mm : IPD/ AA-SN-02
RP ø4.1 H 10mm : IPD/AA-SR-00
H 15mm : IPD/ AA-SR-02
WP ø5.1 H 10mm : IPD/AA-SW-00
Type :Non-Engaging
NP ø3.5 H 10mm : IPD/AA-SN-01
RP ø4.1 H 10mm : IPD/AA-SR-01
WP ø5.1 H 10mm : IPD/AA-SW-01

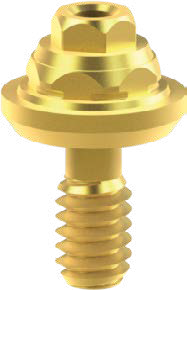

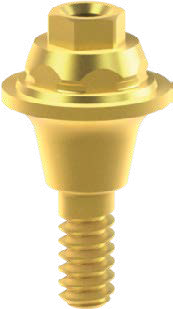

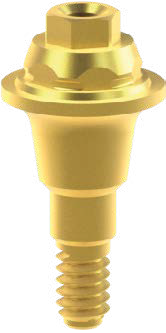

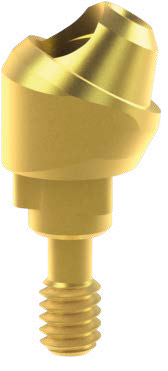

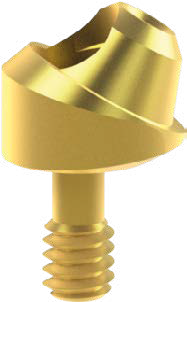

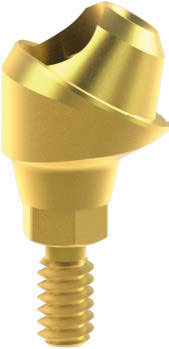

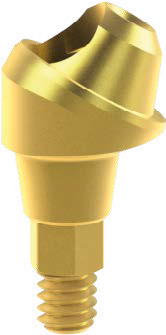

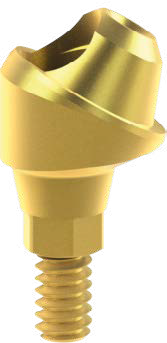

Description : Angled transepithelial abutment for the Multi-unit system
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Straight
NP ø3.5 GH 1.0 : IPD/AA-MN-01
GH 2.0 : IPD/AA-MN-02
GH 3.0 : IPD/AA-MN-03
RP ø4.1 GH 1.0 : IPD/AB-MR-01
GH 2.0 : IPD/AB-MR-02
GH 3.0 : IPD/AB-MR-03
GH 4.0 : IPD/AB-MR-04
GH 5.0 : IPD/AB-MR-05
Type :Angled
17° NP ø4.1 GH 2.0 : IPD/AB-MN-12
GH 3.0 : IPD/AB-MN-13
GH 4.0 : IPD/AB-MN-14
30° NP ø4.1 GH 3.0 : IPD/AB-MN-33
GH 4.0 : IPD/AB-MN-34
GH 5.0 : IPD/AB-MN-35

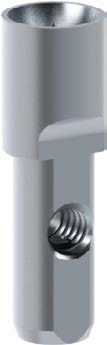

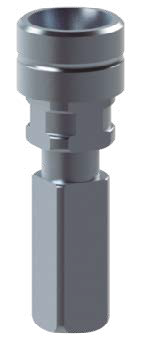

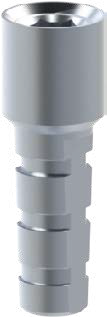

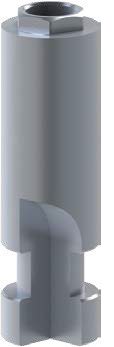

Description : Implant replica for use in the laboratory
Reusable : No
Material : AISI 303: Stainless material with excellent mechanical properties.
Type : Analog
NP ø3.5 : IPD/AA-AN-00
RP ø4.1 : IPD/AA-AR-00
WP ø5.1: IPD/AA-AW-00

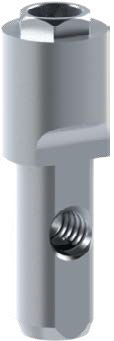

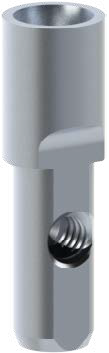

Type : Digital Analog
NP ø3.5 : IPD/AA-AN-00/3D
RP ø4.1 : IPD/AA-AR-00/3D
WP ø5.1: IPD/AA-AW-00/3D
Bottom Screw : IPD/KA-TA-00
Side Screw : IPD/KA-TA-01

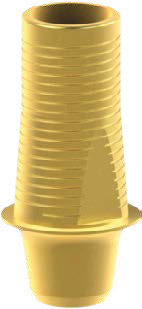

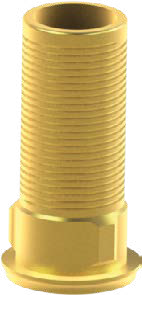

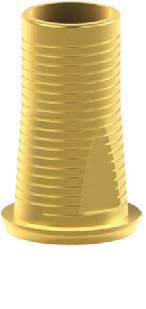

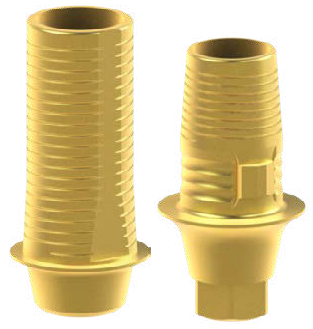

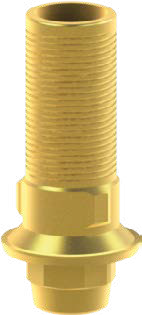

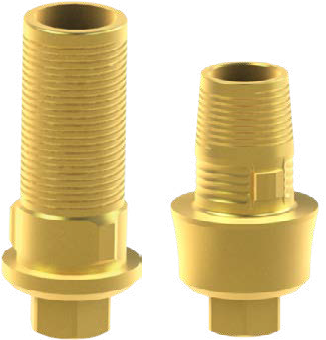

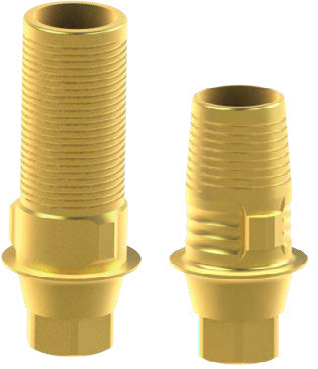

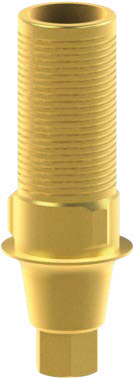

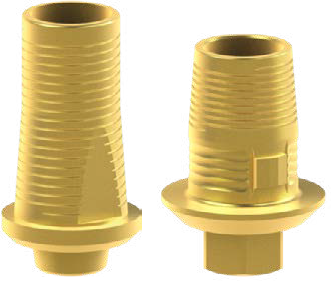

Description: Titanium base that allows a prosthetic restoration with a good passive adjustment
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Engaging
NP ø3.5 GH 1.5 : IPD/AA-IN-02/3D
RP ø4.1 GH 0.5 : IPD/AA-IR-00/3D GH 1.5 : IPD/AA-IR-02/3D
GH 2.5 : IPD/AA-IR-04/3D
WP ø5.1 GH 1.3 : IPD/AA-IW-02/3D
Type : Non-Engaging
NP ø3.5 GH 1.5 : IPD/AA-IN-03/3D
RP ø4.1 GH 0.5 : IPD/AA-IR-01/3D GH 1.5 : IPD/AA-IR-03/3D
GH 2.5 : IPD/AA-IR-05/3D
WP ø5.1 GH 1.3 : IPD/AA-IW-03/3D

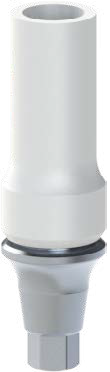

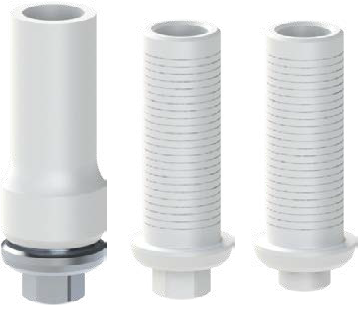

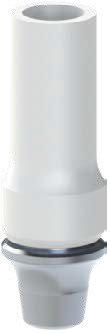

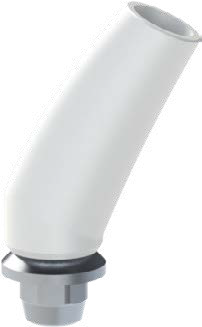

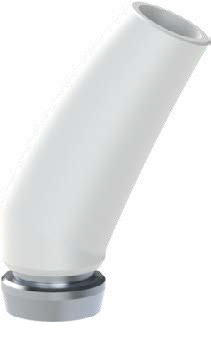

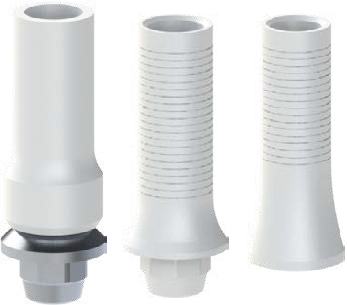

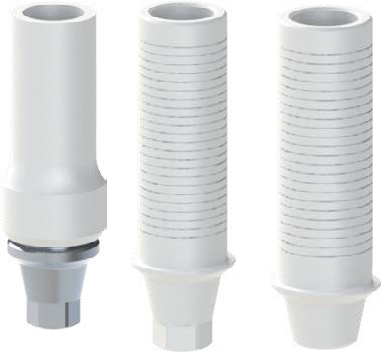

Description : Straight and Angled castable abutment with machined Co-Cr base for casting.
Reusable : No
Material : POM C: Highly resistant thermoplastic material. It leaves no residue.
Type : Straight Engaging
Co-Cr Base NP ø3.5 : IPD/AA-BN-00
RP ø4.1 : IPD/AA-BR-00
No Co-Cr RP ø4.1 : IPD/AA-HR-00
RP ø5.1 : IPD/AA-HW-00
Type : Straight Non-Engaging
Co-Cr Base NP ø3.5 : IPD/AA-BN-00
RP ø4.1 : IPD/AA-BR-00
No Co-Cr RP ø4.1 : IPD/AA-RR-00
RP ø5.1 : IPD/AA-RW-00
Type : Angled Engaging
15° Co-Cr NP ø3.5 : IPD/AA-BN-10
RP ø4.1 : IPD/AA-BR-10
25°Co-Cr NP ø3.5 : IPD/AA-BN-20
RP ø4.1 : IPD/AA-BR-20
Type : Angled Non-Engaging
15° Co-Cr NP ø3.5 : IPD/AA-BN-11
RP ø4.1 : IPD/AA-BR-11
25° Co-Cr NP ø3.5 : IPD/AA-BN-21
RP ø4.1 : IPD/AA-BR-21

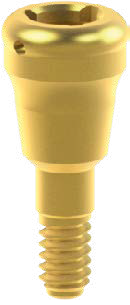

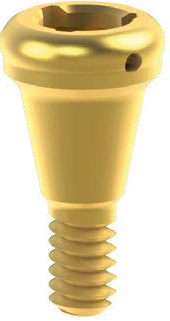

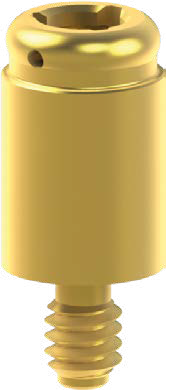

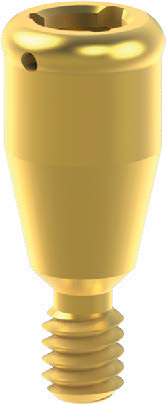

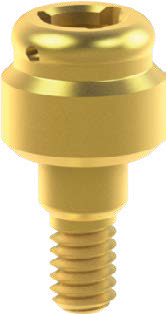

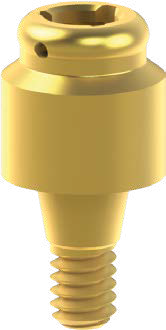

Description : Overdenture abutment for removable prostheses
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : PSD System
NP ø3.5 GH 1.0 : IPD/AA-LN-00
GH 3.0 : IPD/AA- LN-03
GH 5.0 : IPD/AA-LN-05
RP ø4.1 GH 1.0 : IPD/ AA-LR-01
GH 2.0 : IPD/ AA- LR-02
GH 3.0 : IPD/AA-LR-03
GH 4.0 : IPD/AA-LR-04
GH 5.0 : IPD/AA-LR-05
Type : PSD System
WP ø5.1 GH 2.0 : IPD/RA-LW-02
GH 3.0 : IPD/RA-LW-03
GH 4.0 : IPD/RA-LW-04

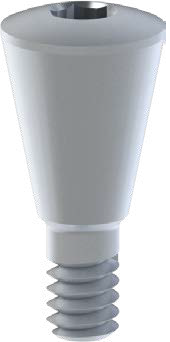

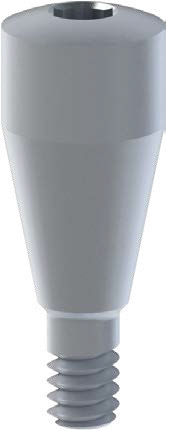

Description : Healing Abutments
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Healing Abutment
NP ø3.5 GH 2.0 : IPD/RA-DN-02
GH 3.0 : IPD/RA- DN-03
GH 4.0 : IPD/RA-DN-04
RP ø4.1 GH 2.0 : IPD/ AA-DR-02
GH 3.0 : IPD/ AA- DR-03
GH 4.0 : IPD/AA-DR-04
GH 5.0 : IPD/AA-DR-05
Type : Healing Abutment
WP ø5.1 GH 2.0 : IPD/RA-DW-02
GH 3.0 : IPD/RA- DW-03
GH 4.0 : IPD/RA-DW-04

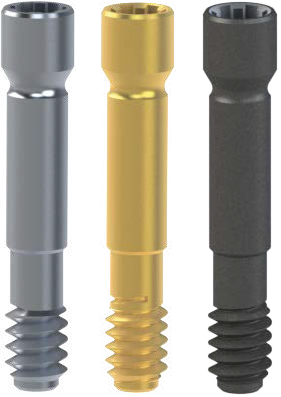

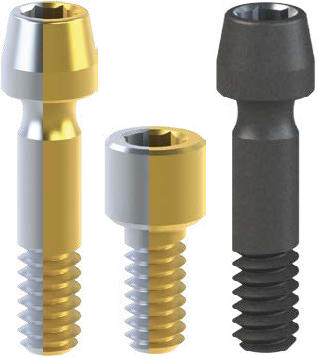

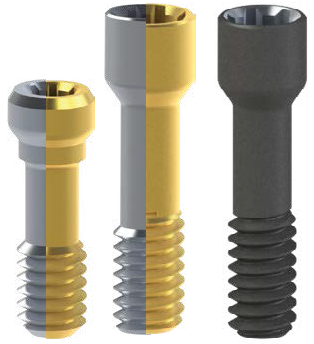

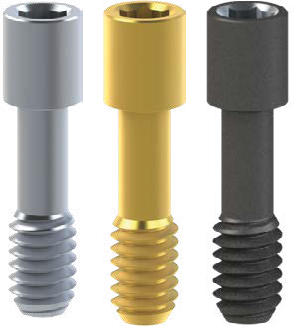

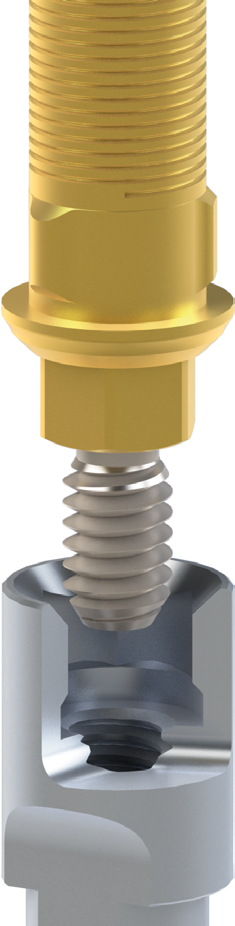

Description : Titanium screw for attaching abutments to the implant TPA Pentalobular titanium screw for angled channel
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : Unigrip Conical Seat
NP ø3.5 : IPD/AA-TN-00
TiN : IPD/AA- TN-00/TIN
BLC : IPD/AA-TN-00/BLC
RP ø4.1 : IPD/AA- TR-00
TiN : IPD/AA- TR-00/TIN
BLC : IPD/AA-TR-00/BLC
RP ø5.1 : IPD/AA- TW-00 (HD 3.4) : IPD/AA- TW-01
TiN : IPD/AA- TW-00/TIN (HD 3.4)
TiN : IPD/AA- TW-01/TIN
BLC : IPD/AA-TW-00/BLC (HD 3.4)
BLC : IPD/AA-TW-01/BLC
Type : Unigrip Flat Seat
RP ø4.1 : IPD/AA- TR-02
TiN : IPD/AA- TR-02/TIN
BLC : IPD/AA-TR-02/BLC
Type : 1.20 Hex Low Profile Conical
RP ø4.1 : IPD/AA- TR-01
TiN : IPD/AA- TR-01/TIN
BLC : IPD/AA-TR-01/BLC
Type :TPA Conical / Flat Seat
NP ø3.5 : IPD/AA-TN-50
RP ø4.1 : IPD/AA-TR-50
RP ø4.1 : IPD/AA-TR-52 (Flat)
RP ø5.1 : IPD/AA-TW-50

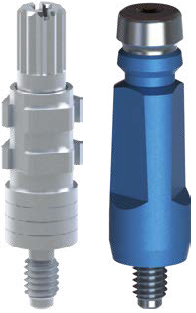

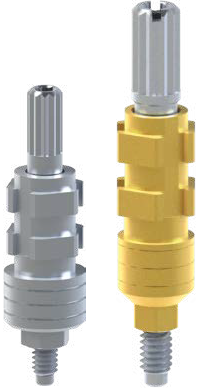

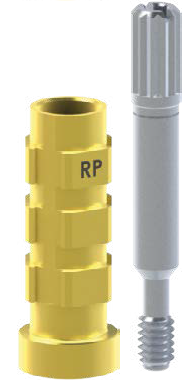

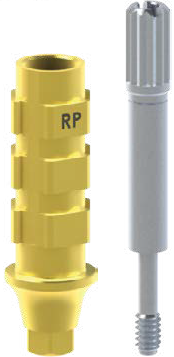

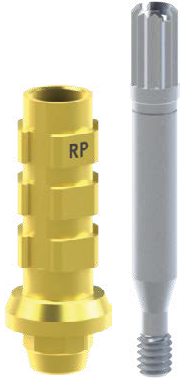

Description : It allows you to replicate the position of an implant in the impression material to accurately position the implant analog
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : Anodized
Type : Open Tray Coping Engaging
NP ø3.5 : IPD/AA-PN-06
RP ø4.1 : IPD/AA-PR-06
WP ø5.1 : IPD/AA-PW-06
Type : Open Tray Coping Non-Engaging
NP ø3.5 : IPD/AA-PN-07
RP ø4.1 : IPD/AA-PR-07
WP ø5.1 : IPD/AA-PW-07
Type : Coping Screws
NP ø3.5 : IPD/AA-TN-00/C
RP ø4.1 : IPD/AA-TR-00/C
WP ø5.1 : IPD/AA-TW-00/C
Type : Open Tray Coping
RP ø4.1 : IPD/AA-CR-00
WP ø5.1 : IPD/AA-CW-00
Type : Closed Tray Coping
RP ø4.1 : IPD/AA-CR-01

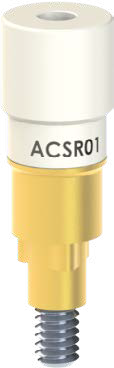

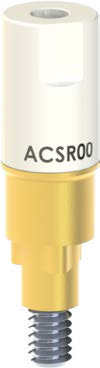

Description : Intra/extra-oral scanning abutment to locate the position of the implant in the mouth or model
Treatment : TiN: Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Material : Titanium Grade 5 + PEEK: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Engaging
NP ø3.5 H 10mm : IPD/AC-SN-00
H 15mm : IPD/ AC-SN-02
RP ø4.3 H 10mm : IPD/AC-SR-00
H 15mm : IPD/ AC-SR-02
WP ø5.0 H 10mm : IPD/AC-SW-00
Type :Non-Engaging
NP ø3.5 H 10mm : IPD/AC-SN-01
RP ø4.3 H 10mm : IPD/AC-SR-01
WP ø5.0 H 10mm : IPD/AC-SW-01

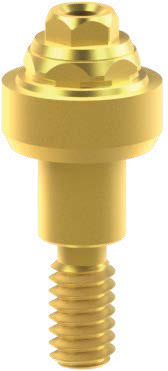

Description : Angled transepithelial abutment for the Multi-unit system
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Straight
NP ø3.5 GH 1.0 : IPD/ AC-MN-01
GH 2.0 : IPD/AC-MN-02
RP ø4.3 GH 1.0 : IPD/AC-MR-01
GH 2.0 : IPD/AC-MR-02
GH 3.0 : IPD/AC-MR-03
GH 4.0 : IPD/AC-MR-04
GH 5.0 : IPD/AC-MR-05
Type :Angled
17° NP ø4.3 GH 2.0 : IPD/ AC-MN-12
GH 3.0 : IPD/AC-MN-13
30° NP ø4.3 GH 3.0 : IPD/ AC-MN-33
GH 4.0 : IPD/AC-MN-34
GH 5.0 : IPD/AC-MN-35

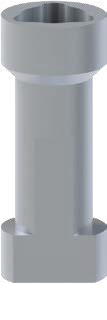

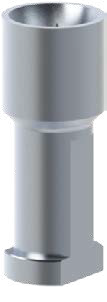

Description : Implant replica for use in the laboratory
Reusable : No
Material : AISI 303: Stainless material with excellent mechanical properties.
Type : Analog
NP ø3.5 : IPD/AA-AN-00
RP ø4.3 : IPD/AA-AR-00
WP ø5.0: IPD/AA-AW-00

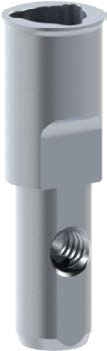

Type : Digital Analog
NP ø3.5 : IPD/AA-AN-00/3D
RP ø4.3 : IPD/AA-AR-00/3D
WP ø5.0: IPD/AA-AW-00/3D
Bottom Screw : IPD/KA-TA-00
Side Screw : IPD/KA-TA-01

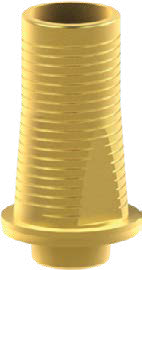

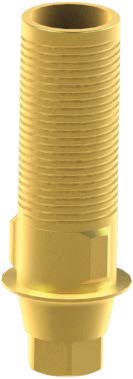

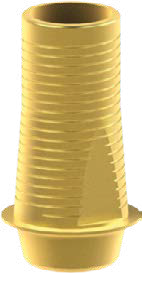

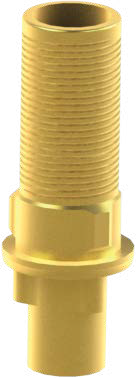

Description: Titanium base that allows a prosthetic restoration with a good passive adjustment
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Engaging
NP ø3.5 GH 0.5 : IPD/AC-IN-00/3D
GH 1.5 : IPD/AC-IN-02/3D
RP ø4.1 GH 0.5 : IPD/ AC-IR-00/3D GH 1.5 : IPD/ AC-IR-02/3D
WP ø5.1 GH 0.5 : IPD/AC-IW-00/3D
GH 1.5 : IPD/AC-IR-02/3D
Type : Non-Engaging
NP ø3.5 GH 0.5 : IPD/AC-IN-01/3D
GH 1.5 : IPD/AC-IN-03/3D
RP ø4.1 GH 0.5 : IPD/ AC-IR-01/3D GH 1.5 : IPD/ AC-IR-03/3D
WP ø5.1 GH 0.5 : IPD/AC-IW-01/3D
GH 1.5 : IPD/AC-IR-03/3D

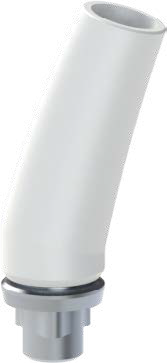

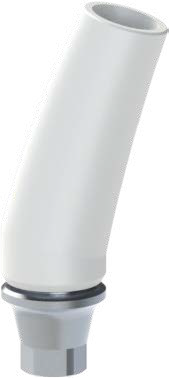

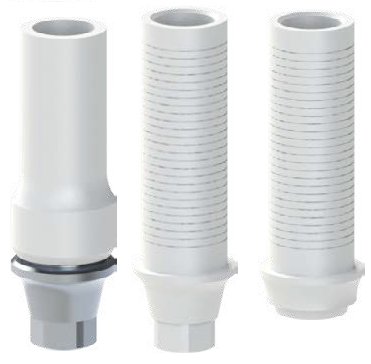

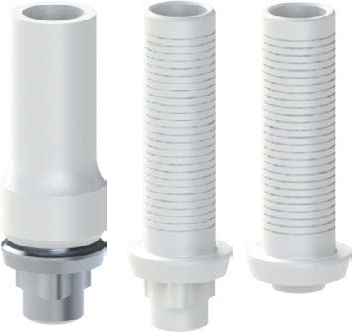

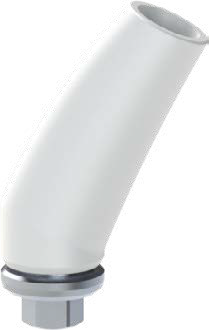

Description : Straight and Angled castable abutment with machined Co-Cr base for casting.
Reusable : No
Material : POM C: Highly resistant thermoplastic material. It leaves no residue.
Type : Straight Engaging
Co-Cr Base NP ø3.5 : IPD/AC-BN-00
RP ø4.3 : IPD/AC-BR-00
No Co-Cr RP ø4.3 : IPD/ AC-HR-00
RP ø5.0 : IPD/ AC-HW-00
Type : Straight Non-Engaging
Co-Cr Base NP ø3.5 : IPD/ AC-BN-00
RP ø4.3 : IPD/AC-BR-00
No Co-Cr RP ø4.3 : IPD/ AC-RR-00
RP ø5.0 : IPD/ AC-RW-00
Type : Angled Engaging
15° Co-Cr NP ø3.5 : IPD/AC-BN-10
RP ø4.3 : IPD/AC-BR-10
25°Co-Cr NP ø3.5 : IPD/ AC-BN-20
RP ø4.3 : IPD/AC-BR-20
Type : Angled Non-Engaging
15° Co-Cr NP ø3.5 : IPD/ AC-BN-11
RP ø4.3 : IPD/ AC-BR-11
25° Co-Cr NP ø3.5 : IPD/ AC-BN-21
RP ø4.3 : IPD/AC-BR-21

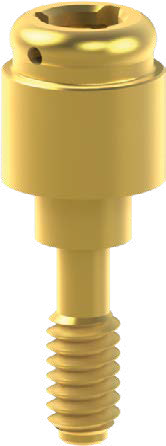

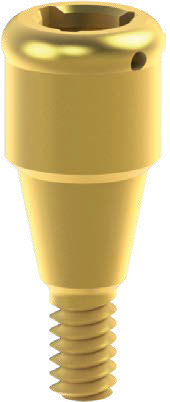

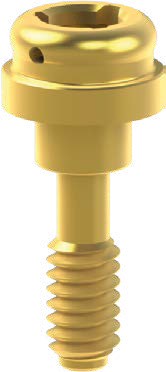

Description : Overdenture abutment for removable prostheses
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : PSD System
NP ø3.5 GH 3.0 : IPD/AC-LN-03
GH 5.0 : IPD/AC- LN-05
Type : PSD System
RP ø4.3 GH 1.0 : IPD/ AC-LR-01
GH 3.0 : IPD/AC-LR-03
GH 5.0 : IPD/AC-LR-05

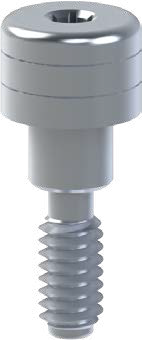

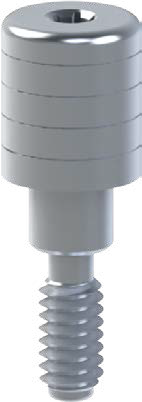

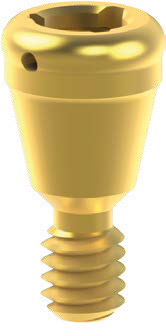

Description : Healing Abutments
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Healing Abutment
NP ø3.5 GH 3.0 : IPD/AC-DN-03
GH 5.0 : IPD/ AC- DN-05
GH 7.0 : IPD/AC-DN-07
RP ø4.3 GH 3.0 : IPD/ AC-DR-03
GH 5.0 : IPD/ AC- DR-05
Type : Healing Abutment
WP ø5.0 GH 3.0 : IPD/AC-DW-03
GH 5.0 : IPD/AC- DW-05

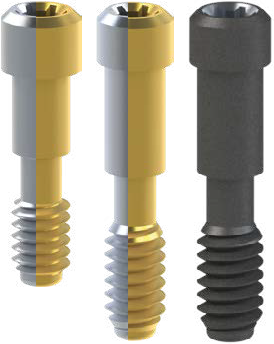

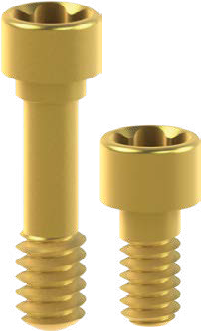

Description : Titanium screw for attaching abutments to the implant TPA Pentalobular titanium screw for angled channel
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : Unigrip Flat Seat
NP ø3.5 : IPD/AC-TN-00
TiN : IPD/AC- TN-00/TIN
BLC : IPD/AC-TN-00/BLC
RP ø4.3 : IPD/AC- TR-00
TiN : IPD/ AC- TR-00/TIN
BLC : IPD/AC-TR-00/BLC
RP ø5.0 : IPD/ AC- TR-00
TiN : IPD/ AC- TR-00/TIN
BLC : IPD/AC-TR-00/BLC

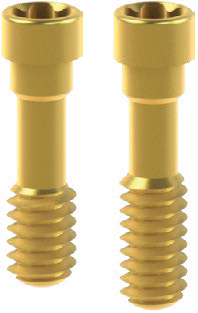

Type : TPA Flat Seat
NP ø3.5 : IPD/ AC- TN-50
TiN : IPD/ AC- TN-51*
RP ø4.1 : IPD/AC-TR-50
: IPD/AC-TR-51*
WP ø5.1 : IPD/AC-TR-50
: IPD/AC-TR-51*
* IPD/AC-TN-51 screw for angled Ti-Bases Hollow Screw System®, IPD/AC-BN-20, and IPD/AC-BN-21. IPD/AC-TR-51 screw for angled Ti-Bases Hollow Screw System® and Co-Cr from IPD 2004.

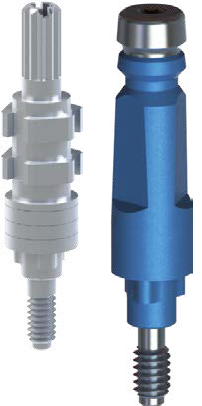

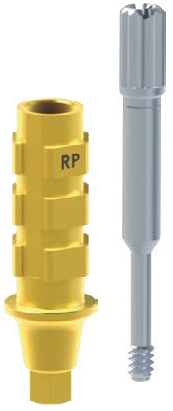

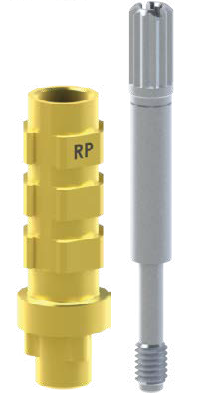

Description : It allows you to replicate the position of an implant in the impression material to accurately position the implant analog
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : Anodized
Type : Open Tray Coping Engaging
NP ø3.5 : IPD/AC-PN-06
RP ø4.3 : IPD/AC-PR-06
Type : Open Tray Coping Non-Engaging
NP ø3.5 : IPD/ AC-PN-07
RP ø4.3 : IPD/AC-PR-07
Type : Coping Screws
NP ø3.5 : IPD/ AC-TN-00/C
RP ø4.3 : IPD/AC-TR-00/C
Type : Open Tray Coping
WP ø5.0 : IPD/AC-CW-00
Type : Closed Tray Coping
RP ø3.5 : IPD/ AC-CN-01
RP ø4.3 : IPD/ AC-CR-01

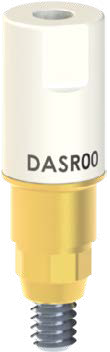

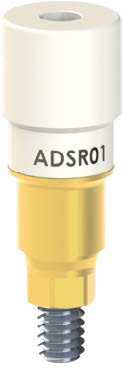

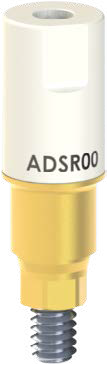

Description : Intra/extra-oral scanning abutment to locate the position of the implant in the mouth or model
Treatment : TiN: Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Material : Titanium Grade 5 + PEEK: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Engaging
ø3.0 H 10mm : IPD/AD-ST-00
H 15mm : IPD/ AD-ST-02
NP ø3.5 H 10mm : IPD/AD-SN-00
H 15mm : IPD/ AD-SN-02
RP ø4.3 H 10mm : IPD/AD-SR-00
H 15mm : IPD/ AD-SR-02
Type :Non-Engaging
ø3.0 H 10mm : IPD/AD-ST-01
NP ø3.5 H 10mm : IPD/AD-SN-01
RP ø4.3 H 10mm : IPD/AD-SR-01
Description : Angled transepithelial abutment for the Multi-unit system
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Straight
NP ø3.5 GH 1.5 : IPD/ AD-MN-01
GH 2.5 : IPD/AD-MN-02
GH 3.5 : IPD/AD-MN-03
GH 4.5 : IPD/AD-MN-04
RP ø4.3 GH 1.5 : IPD/AD-MR-01
GH 2.5 : IPD/AD-MR-02
GH 3.5 : IPD/AD-MR-03
GH 4.5 : IPD/AD-MR-04
Type :Angled
17° NP ø3.5 GH 2.5 : IPD/AD-MN-12
GH 3.5 : IPD/AD-MN-13
30° RP ø4.3 GH 3.5 : IPD/AD-MR-33
GH 4.5 : IPD/AD-MR-34
Description : Implant replica for use in the laboratory
Reusable : No
Material : AISI 303: Stainless material with excellent mechanical properties.
Type : Analog
ø3.0 : IPD/AD-AT-00
NP ø3.5 : IPD/ AD-AN-00
RP ø4.3: IPD/AD-AR-00
Type : Digital Analog
ø3.0 : IPD/ AD-AT-00/3D
NP ø3.5 : IPD/ AD-AN-00/3D
RP ø4.3: IPD/AD-AR-00/3D
Bottom Screw : IPD/KA-TA-00
Side Screw : IPD/KA-TA-01
Description: Titanium base that allows a prosthetic restoration with a good passive adjustment
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Engaging
ø3.0 GH 0.8 : IPD/AD-IT-00/3D
GH 1.5 : IPD/ AD-IT-02/3D
GH 2.5 : IPD/ AD-IT-04/3D
NP ø3.5 GH 0.5 : IPD/ AD-IN-00/3D
GH 1.5 : IPD/ AD-IN-02/3D
GH 2.5 : IPD/ AD-IN-04/3D
GH 3.5 : IPD/ AD-IN-06/3D
RP ø4.3 GH 0.5 : IPD/AD-IR-00/3D
GH 1.5 : IPD/AD-IR-02/3D
GH 2.5 : IPD/AD-IR-04/3D
Type : CEREC® Engaging
NP ø3.5 GH 0.5 : IPD/AD-IN-00/SI
GH 1.5 : IPD/AD-IN-02/SI
GH 2.5 : IPD/AD-IN-04/SI
Type : Non-Engaging
ø3.0 GH 0.8 : IPD/AD-IT-01/3D
GH 1.5 : IPD/ AD-IT-03/3D
GH 2.5 : IPD/ AD-IT-05/3D
NP ø3.5 GH 0.5 : IPD/AD-IN-01/3D
GH 1.5 : IPD/AD-IN-03/3D
GH 2.5 : IPD/ AD-IN-05/3D
GH 3.5 : IPD/ AD-IN-07/3D
RP ø4.3 GH 0.5 : IPD/AD-IR-01/3D
GH 1.5 : IPD/AD-IR-03/3D
GH 2.5 : IPD/AD-IR-05/3D
Type : CEREC® Engaging
RP ø4.3 GH 0.5 : IPD/AD-IR-00/SI
GH 1.5 : IPD/AD-IR-02/SI
GH 2.5 : IPD/AD-IR-04/SI
Description : Straight and Angled castable abutment with machined Co-Cr base for casting.
Reusable : No
Material : POM C: Highly resistant thermoplastic material. It leaves no residue.
Type : Straight Engaging
Co-Cr Base ø3.0 : IPD/AD-BT-00
NP ø3.5 : IPD/AD-BN-00
RP ø4.3 : IPD/AD-BR-00
No Co-Cr RP ø4.3 : IPD/ AD-HR-00
Type : Straight Non-Engaging
Co-Cr Base ø3.0 : IPD/AD-BT-01
NP ø3.5 : IPD/AD-BN-01
RP ø4.3 : IPD/AD-BR-01
No Co-Cr RP ø4.3 : IPD/ AD-RR-00
Type : Angled Engaging
Co-Cr ø3.0 15° : IPD/ AD-BT-10
25° : IPD/AD-BT-20
Co-Cr NP ø3.5 15° : IPD/ AD-BN-10
25° : IPD/AD-BN-20
Co-Cr RP ø4.3 15° : IPD/ AD-BR-10
25° : IPD/AD-BR-20
Type : Angled Non-Engaging
Co-Cr ø3.0 15° : IPD/ AD-BT-11
25° : IPD/AD-BT-21
Co-CrNP ø3.5 15° : IPD/ AD-BN-11
25° : IPD/AD-BN-21
Co-CrRP ø4.3 15° : IPD/ AD-BR-11
25° : IPD/AD-BR-21
Description : Overdenture abutment for removable prostheses
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : PSD System
NP ø3.5 GH 1.0 : IPD/AD-LN-01
GH 2.0 : IPD/ AD-LN-02
GH 3.0 : IPD/ AD-LN-03
GH 4.0 : IPD/AD- LN-04
GH 5.0 : IPD / AD- LN-05
Type : PSD System
RP ø4.3 GH 1.0 : IPD/ AD-LR-01
GH 2.0 : IPD/ AD- LR-02
GH 3.0 : IPD/ AD- LR-03
GH 4.0 : IPD/ AD-LR-04
GH 5.0 : IPD/ AD-LR-05
Description : Healing Abutments
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Healing Abutment
ø3.0 GH 3.0 : IPD/AD-DT-03
GH 5.0 : IPD/ AD- DT-05
GH 7.0 : IPD/AD-DT-07
NP ø3.5 GH 1.5 : IPD/ AD-DN-03
GH 3.0 : IPD/ AD- DN-05
GH 5.0 : IPD/AD-DN-07
GH 3.0 wide : IPD/ AD-DN-13
GH 3.0 wide : IPD/ AD- DN-15
Sealing cap : IPD/ AD- DN-00
Type : Healing Abutment
WP ø5.0 GH 1.5 : IPD/ AD-DR-01
GH 3.5 : IPD/ AD- DR-03
GH 4.3 : IPD/ AD- DR-05
Sealing cap : IPD/ AD- DR-00
Description : Titanium screw for attaching abutments to the implant TPA Pentalobular titanium screw for angled channel
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : Unigrip Conical Seat
ø3.0 : IPD/AD-TT-00
TiN : IPD/ AD- TT-00/TIN
BLC : IPD/AD-TT-00/BLC
NP ø3.5 : IPD/ AA- TN-00
TiN : IPD/ AA- TN-00/TIN
BLC : IPD/AA-TN-00/BLC
RP ø4.3 : IPD/ AA- TR-00
TiN : IPD/ AA- TR-00/TIN
BLC : IPD/AA-TR-00/BLC
Type :TPA Conical
ø3.0 TiN : IPD/ AD- TT-50
RP ø3.5 TiN : IPD/AA-TN-50
WP ø4.3 TiN : IPD/AD-TR-50
Description : It allows you to replicate the position of an implant in the impression material to accurately position the implant analog
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : Anodized
Type : Open Tray Coping Engaging
ø3.0 : IPD/AD-PT-06
NP ø3.5 : IPD/AD-PN-06
RP ø4.3 : IPD/AD-PR-06
Type : Open Tray Coping Non-Engaging
ø3.0 : IPD/ AD-PT-07
NP ø3.5 : IPD/ AD-PN-07
RP ø4.3 : IPD/AD-PR-07
Type : Coping Screws
ø3.0 : IPD/ AD-TT-00/C
NP ø3.5 : IPD/ AD-TN-00/C
RP ø4.3 : IPD/AC-TR-00/C
Type : Open Tray Coping
ø3.0 : IPD/AD-CT-00

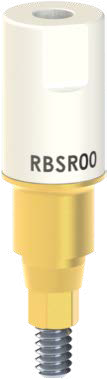

Description : Intra/extra-oral scanning abutment to locate the position of the implant in the mouth or model
Treatment : TiN: Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Material : Titanium Grade 5 + PEEK: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Engaging
Yellow
ø3.0 H 10mm : IPD/EA-SN-00
H 15mm : IPD/ EA-SN-02
Aqua
ø3.5-4.0 H 10mm : IPD/EA-SR-00
H 15mm : IPD/ EA-SR-02
Lilac
ø4.5-5.0 H 10mm : IPD/EA-SW-00
H 15mm : IPD/ EA-SW-02
Type :Non-Engaging
Yellow
ø3.0 H 10mm : IPD/EA-SN-01
Aqua
ø3.5-4.0 H 10mm : IPD/EA-SR-01
Lilac
ø4.5-5.0 H 10mm : IPD/EA-SW-01

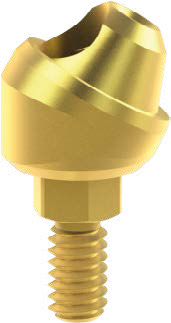

Description : Angled transepithelial abutment for the Multi-unit system
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Straight
Aqua
ø3.5-4.0 GH 1.5 : IPD/EA-MN-01
GH 2.5 : IPD/EA-MN-02
GH 3.5 : IPD/EA-MN-03
GH 4.5 : IPD/EA-MN-04
Lilac
ø4.5-5.0 GH 1.5 : IPD/EA-MR-01
GH 2.5 : IPD/EA-MR-02
GH 3.5 : IPD/EA-MR-03
GH 4.5 : IPD/EA-MR-04
Type :Angled
Aqua
ø3.5-4.0 17° GH 2.5 : IPD/EA-MR-12
GH 3.5 : IPD/EA-MR-13
30° GH 3.5 : IPD/EA-MR-33
GH 4.5 : IPD/EA-MR-34
Lilac
ø4.5-5.0 17° GH 2.5 : IPD/EA-MW-12
30° GH 3.5 : IPD/EA-MW-33
Description : Implant replica for use in the laboratory
Reusable : No
Material : AISI 303: Stainless material with excellent mechanical properties.
Type : Analog
Yellow
ø3.0 : IPD/EA-AN-00
Aqua
ø3.5-4.0 : IPD/ EA-AR-00
Lilac
ø4.5-5.0 : IPD/EA-AW-00
Type : Digital Analog
Yellow
ø3.0 : IPD/EA-AN-00/3D
Aqua
ø3.5-4.0 : IPD/ EA-AR-00/3D
Lilac
ø4.5-5.0 : IPD/EA-AW-00/3D
Bottom Screw : IPD/KA-TA-00
Side Screw : IPD/KA-TA-01
Description: Titanium base that allows a prosthetic restoration with a good passive adjustment
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Engaging
Yellow
ø3.0 GH 0.8 : IPD/EA-IN-00/3D
GH 1.5 : IPD/ EA-IN-02/3D
GH 2.5 : IPD/ EA-IN-04/3D
Aqua
ø3.5-4.0 GH 0.5 : IPD/ EA-IR-00/3D
GH 1.5 : IPD/ EA-IR-02/3D
GH 2.5 : IPD/ EA-IR-04/3D
GH 3.5 : IPD/ EA-IR-06/3D
Lilac
ø4.5-5.0 GH 0.5 : IPD/EA-IW-00/3D
GH 1.5 : IPD/EA-IW-02/3D
GH 2.5 : IPD/EA-IW-04/3D
Type : Non-Engaging
Yellow
ø3.0 GH 0.8 : IPD/ EA- IN-01/3D
GH 1.5 : IPD/ EA-IN-03/3D
GH 2.5 : IPD/ EA-IN-05/3D
Aqua
ø3.5-4.0 GH 0.5 : IPD/ EA- IR-01/3D
GH 1.5 : IPD/EA-IR-03/3D
GH 2.5 : IPD/ EA-IR-05/3D
GH 3.5 : IPD/ EA-IR-07/3D
Type : CEREC® Engaging
ø3.5-4.0 GH 0.5 : IPD/ EA-IR-00/SI
GH 1.5 : IPD/EA-IR-02/SI
GH 2.5 : IPD/EA-IR-04/SI

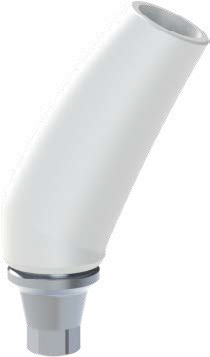

Description : Straight and Angled castable abutment with machined Co-Cr base for casting.
Reusable : No
Material : POM C: Highly resistant thermoplastic material. It leaves no residue.
Type :Co-Cr Base Engaging
Yellow ø3.0 0° : IPD/EA-BN-00
15° : IPD/ EA-BN-10
25° : IPD/ EA-BN-20
Aqua ø3.5-4.0 0° : IPD/EA-BR-00
15° : IPD/ EA-BR-10
25° : IPD/ EA-BR-20
Lilac ø4.5-5.0 0° : IPD/EA-BW-00
15° : IPD/ EA-BW-10
Type : Engaging
Aqua ø3.5-4.0 0° : IPD/EA-HR-00
Lilac ø4.5-5.0 0° : IPD/EA-HW-00
Type : Co-Cr Base Non-Engaging
Yellow ø3.0 0° : IPD/EA-BN-01
15° : IPD/ EA-BN-11
25° : IPD/ EA-BN-21
Aqua ø3.5-4.0 0° : IPD/EA-BR-01
15° : IPD/ EA-BR-11
25° : IPD/ EA-BR-21
Lilac ø4.5-5.0 0° : IPD/EA-BW-01
15° : IPD/ EA-BW-11
Type : Non-Engaging
Aqua ø3.5-4.0 0° : IPD/EA-RR-01
Lilac ø4.5-5.0 0° : IPD/EA-RW-01
Description : Overdenture abutment for removable prostheses
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : PSD System
Aqua
ø3.5-4.0 GH 1.0 : IPD/EA-LR-01
GH 2.0 : IPD/EA-LR-02
GH 3.0 : IPD/EA-LR-03
GH 4.0 : IPD/EA-LR-04
GH 5.0 : IPD/EA-LR-05
Type : PSD System
Lilac
ø4.5-5.0 GH 1.0 : IPD/EA-LW-01
GH 2.0 : IPD/EA-LW-02
GH 3.0 : IPD/EA-LW-03
GH 4.0 : IPD/EA-LW-04
GH 5.0 : IPD/EA-LW-05
Description : Healing Abutments
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Healing Abutment
Aqua
ø3.5-4.0 GH 2.0 : IPD/EA-DR-02
GH 4.0 : IPD/EA-DR-04
GH 6.0 : IPD/EA-DR-06
GH 8.0 : IPD/EA-DR-08
GH 10.0 : IPD/EA-DR-10
Head Diameter (mm) = ø3.6
Type : Healing Abutment
Lilac
ø4.5-5.0 GH 2.0 : IPD/EA-DR-02
GH 4.0 : IPD/EA-DR-04
GH 6.0 : IPD/EA-DR-06
GH 8.0 : IPD/EA-DR-08
Head Diameter (mm) = ø4.6
Description : Titanium screw for attaching abutments to the implant TPA Pentalobular titanium screw for angled channel
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : 1.27 Hex Conical Seat
Yellow
ø3.0 : IPD/EA-TN-00
TiN : IPD/ EA-TN-00/TIN
BLC : IPD/ EA-TN-00/BLC
Type : 1.27 Hex Flat Seat
Aqua
ø3.5-4.0 : IPD/ EA-TR-00
TiN : IPD/ EA-TR-00/TIN
BLC : IPD/ EA-TR-00/BLC
Lilac
ø4.5-5.0 : IPD/EA-TW-00
TiN : IPD/EA-TW-00/TIN
BLC : IPD/EA-TW-00/BLC
Type : TPA Conical Seat
Yellow
ø3.0 TiN : IPD/EA-TN-50
Type : TPA Flat Seat
Aqua
ø3.5-4.0 TiN : IPD/ EA-TR-50
Lilac
ø4.5-5.0 TiN : IPD/AC-TR-50
Type : Cerec Unigrip Conical Seat
Aqua
ø3.5-4.0 TiN : IPD/EA-TR-02/TIN
Description : It allows you to replicate the position of an implant in the impression material to accurately position the implant analog
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : Anodized
Type : Open Tray Coping Engaging
Yellow ø3.0 GH 1.5 : IPD/EA-PN-06
Aqua ø3.5-4.0 GH 1.5 : IPD/ EA-PR-06
Lilac ø4.5-5.0 GH 1.5 : IPD/EA-PW-06
Type : Open Tray Coping NonEngaging
Yellow ø3.0 GH 1.5 : IPD/EA-PN-07
Aqua ø3.5-4.0 GH 1.5 : IPD/ EA-PR-07
Lilac ø4.5-5.0 GH 1.5 : IPD/EA-PW-07
Type : Coping Screws
Yellow ø3.0 : IPD/EA-TN-00/C
Aqua ø3.5-4.0 : IPD/ EA-TR-00/C
Lilac ø4.5-5.0 : IPD/EA-TW-00/C
Type : Open Tray Coping
Yellow ø3.0 : IPD/EA-CN-00
Description : Intra/extra-oral scanning abutment to locate the position of the implant in the mouth or model
Treatment : TiN: Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Material : Titanium Grade 5 + PEEK: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Engaging
RN ø4.8 H 10mm : IPD/DA-SR-00
H 15mm : IPD/ DA-SR-02
WN ø6.5 H 10mm : IPD/DA-SW-00
Type :Non-Engaging
RN ø4.8 H 10mm : IPD/DA-SR-01
WN ø6.5 H 10mm : IPD/DA-SW-01
Description : Angled transepithelial abutment for the Multi-unit system
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Straight
RN ø4.8 GH 0.9 : IPD/DA-MR-01
Angled Multi-units Not Available
Description : Implant replica for use in the laboratory
Reusable : No
Material : AISI 303: Stainless material with excellent mechanical properties.
Type : Analog Implant Level
RN ø4.8 : IPD/DA-AR-00
WN ø6.5 : IPD/ DA-AW-00
Type :Analog SynOcta®
RN ø4.8 : IPD/DA-AR-01
Type : Digital Analog Implant Level
RN ø4.8 : IPD/DA-AR-00/3D
WN ø6.5 : IPD/ DA-AW-00/3D
Bottom Screw : IPD/KA-TA-00
Side Screw : IPD/KA-TA-01
Description: Titanium base that allows a prosthetic restoration with a good passive adjustment
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Engaging
RN ø4.8 GH 0.4 : IPD/DA-IR-00/3D
WN ø6.5 GH 0.4 : IPD/ EA-IW-00/3D
Type : Non-Engaging
RN ø4.8 GH 0.4 : IPD/ DA- IR-01/3D
WN ø6.5 GH 0.4 : IPD/ DA- IW-01/3D
Description : Straight and Angled castable abutment with machined Co-Cr base for casting.
Reusable : No
Material : POM C: Highly resistant thermoplastic material. It leaves no residue.
Type :Straight Engaging Implant Level
Co-Cr Base RN ø4.8 : IPD/DA-BR-00
WN ø6.5 : IPD/DA-BW-00
No Co-Cr RN ø4.8 : IPD/ DA-HR-01
Type : Straight Engaging SynOcta®
Co-Cr Base RN ø4.8 : IPD/DA-BR-03
No Co-Cr RN ø4.8 : IPD/ DA-HR-00
Type : Straight Non-Engag. Implant Lvl
Co-Cr Base RN ø4.8 : IPD/DA-BR-01
WN ø6.5 : IPD/DA-BW-01
No Co-Cr RN ø4.8 : IPD/ DA-RR-01
Type : Straight Engaging SynOcta®
Co-Cr Base RN ø4.8 : IPD/DA-BR-02
No Co-Cr RN ø4.8 : IPD/ DA-RR-00
Type : Angled Engaging Implant Level
Co-Cr RN ø4.8 15° : IPD/ DA-BR-10
25° : IPD/DA-BR-20
Co-Cr WN ø6.5 15° : IPD/ DA-BW-10
25° : IPD/DA-BW-20
Type :Angled Engaging SynOcta®
Co-Cr RN ø4.8 15° : IPD/ DA-BR-13
Type :Angled Non-Engag. Implant Lvl
Co-Cr RN ø4.8 15° : IPD/ DA-BR-11
25° : IPD/DA-BR-21
Co-Cr WN ø6.5 15° : IPD/ DA-BW-11
25° : IPD/DA-BW-21
Type : Angled Non-Engag. SynOcta®
Co-Cr RN ø4.8 15° : IPD/ DA-BR-12
Description : Overdenture abutment for removable prostheses
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : PSD System
RN ø4.8 GH 1.0 : IPD/DA-LR-01
GH 2.0 : IPD/ DA- LR-02
GH 3.0 : IPD/ DA- LR-03
Locators not Available in Wide
Description : Healing Abutments
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Healing Abutment
RN ø4.8 GH 1.5 : IPD/DA-DR-01
GH 3.0 : IPD/ DA- DR- 03
GH 4.5 : IPD/DA-DR-04
Sealing cap : IPD/ DA- DR-00
Healing Abutment unavailable in wide
Description : Titanium screw for attaching abutments to the implant TPA Pentalobular titanium screw for angled channel
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : Torx Conical Seat Implant Level
RN ø4.8/WN ø6.5 : IPD/DA-TR-03
TiN : IPD/DA-TR-03/TIN
BLC : IPD/DA-TR-03/BLC
RN ø4.8/WN ø6.5 : IPD/DA-TR-01*
TiN : IPD/ DA- TR-01/TIN*
BLC : IPD/DA-TR-01/BLC*
* Narrower head for Hollow Screw Sys.
Type : Torx Flat Seat Implant Level
RN ø4.8/WN ø6.5 : IPD/DA-TR-02
TiN : IPD/ DA- TR-02/TIN
BLC : IPD/DA-TR-02/BLC
Type : Torx Conical Seat SynOcta®
RN ø4.8/WN ø6.5 : IPD/DA- TR-00
TiN : IPD/DA-TR-00/TIN
BLC : IPD/DA-TR-00/BLC
Type : TPA Conical Seat Implant Level
RN ø4.8 TiN : IPD/DA-TR-51
WN ø6.5 TiN : IPD/DA-TR-51
Type : TPA Conical Seat SynOcta®
RN ø4.8 TiN : IPD/DA-TR-50
WN ø6.5 TiN : IPD/DA-TR-50
Description : It allows you to replicate the position of an implant in the impression material to accurately position the implant analog
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : Anodized
Type :Open Tray Engaging Implant Lvl
RN ø4.8 : IPD/DA-PR-06
WN ø6.5 : IPD/AD-PW-06
Coping Screw : IPD/ DA-TR-01/C
Type : Open Tray Engaging SynOcta®
RN ø4.8 : IPD/DA-PR-09
Coping Screw : IPD/ DA-TR-00/C
Type : Open Tray Non-Engaging
Implant Level
RN ø4.8 : IPD/DA-PR-07
WN ø6.5 : IPD/AD-PW-07
Coping Screw : IPD/ DA-TR-01/C
Type :Open Tray Non-Engaging
SynOcta®
RN ø4.8 : IPD/DA-PR-08
Coping Screw : IPD/ DA-TR-00/C
Description : Intra/extra-oral scanning abutment to locate the position of the implant in the mouth or model
Treatment : TiN: Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Material : Titanium Grade 5 + PEEK: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Engaging
GM H 10mm : IPD/RB-SR-00
H 15mm : IPD/ RB-SR-02
Type :Non-Engaging
GM H 10mm : IPD/RB-SR-01
Description : Angled transepithelial abutment for the Multi-unit system
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Straight
GM GH 1.5 : IPD/ RB-MN-01
GH 2.5 : IPD/RB-MN-02
GH 3.5 : IPD/RB-MN-03
GH 4.5 : IPD/RB-MN-04
Type :Angled
GM 17° GH 2.5 : IPD/RB-MN-12
GM 30° GH 3.5 : IPD/RB-MR-33
Description : Implant replica for use in the laboratory
Reusable : No
Material : AISI 303: Stainless material with excellent mechanical properties.
Type : Analog
GM : IPD/RB-AR-00
Type : Digital Analog
GM : IPD/ RB-AR-00/3D
Bottom Screw : IPD/KA-TA-00
Side Screw : IPD/KA-TA-01
Description: Titanium base that allows a prosthetic restoration with a good passive adjustment
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Engaging
GM GH 1.0 : IPD/RB-IR-00/3D
GH 2.0 : IPD/ RB-IR-02/3D
GH 3.0 : IPD/ RB-IR-04/3D
GH 4.0 : IPD/ RB-IR-06/3D
Type : Non-Engaging
GM GH 1.0 : IPD/RB-IR-01/3D
GH 2.0 : IPD/ RB-IR-03/3D
GH 3.0 : IPD/ RB-IR-05/3D
GH 4.0 : IPD/ RB-IR-07/3D
Description : Straight and Angled castable abutment with machined Co-Cr base for casting.
Reusable : No
Material : POM C: Highly resistant thermoplastic material. It leaves no residue.
Type : Straight Engaging
Co-Cr Base GM : IPD/RB-BR-00
Type : Straight Non-Engaging
Co-Cr Base GM : IPD/RB-BR-01
Description : Overdenture abutment for removable prostheses
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : PSD System
GM GH 2.0 : IPD/RB-LR-02
GH 3.0 : IPD/ RB-LR-03
GH 4.0 : IPD/ RB-LR-04
GH 5.0 : IPD/ RB-LR-05
Locators not Available in Wide
Description : Healing Abutments
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Healing Abutment
GM GH 1.5 : IPD/RB-DR-01
GH 3.0 : IPD/ RB-DR-03
GH 5.0 : IPD/RB-DR-05
GH 7.0 : IPD/ RB-DR-07
Healing Abutment unavailable in Wide
Description : Titanium screw for attaching abutments to the implant TPA Pentalobular titanium screw for angled channel
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : Neo GM Conical Seat
GM : IPD/RB-TR-00
TiN : IPD/ RB- TR-00/TIN
BLC : IPD/RB-TR-00/BLC
Type : TPA Conical Seat
TPA TiN : IPD/ RB-TT-50
Description : It allows you to replicate the position of an implant in the impression material to accurately position the implant analog
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : Anodized
Type : Open Tray Coping Engaging
GM : IPD/RB-PR-06
Type :Open Tray Coping Non-Engaging
GM : IPD/ RB-PR-07
Coping Screw : IPD/ RB-TR-00/C
Coping not Available in Wide

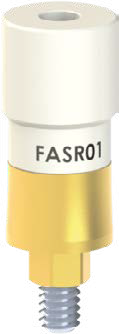

Description : Intra/extra-oral scanning abutment to locate the position of the implant in the mouth or model
Treatment : TiN: Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Material : Titanium Grade 5 + PEEK: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Engaging
ø3.5 H 10mm : IPD/FA-SN-00
H 15mm : IPD/ FA-SN-02
ø4.5 H 10mm : IPD/FA-SR-00
H 15mm : IPD/ FA-SR-02
ø5.7 H 10mm : IPD/FA-SW-00
H 15mm : IPD/ FA-SW-02
Type :Non-Engaging
ø3.5 H 10mm : IPD/FA-SN-01
ø4.5 H 10mm : IPD/FA-SR-01
ø5.7 H 10mm : IPD/FA-SW-01
Description : Angled transepithelial abutment for the Multi-unit system
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Straight
ø3.5 GH 0.9 : IPD/FA-MN-00
GH 1.5 : IPD/FA-MN-01
GH 2.5 : IPD/FA-MN-02
GH 3.5 : IPD/FA-MN-03
GH 4.5 : IPD/FA-MN-04
ø4.5 GH 1.5 : IPD/FA-MR-01
GH 2.5 : IPD/FA-MR-02
GH 3.5 : IPD/FA-MR-03
GH 4.5 : IPD/FA-MR-04
Type :Angled
ø3.5 17° GH 2.5 : IPD/FA-MR-12
GH 3.5 : IPD/FA-MR-13
ø3.5 30° GH 3.5 : IPD/FA-MR-33
GH 4.5 : IPD/FA-MR-34
ø4.5 17° GH 3.0 : IPD/FA-MR-13
GH 4.0 : IPD/FA-MR-14
ø4.5 30° GH 3.5 : IPD/FA-MR-33
GH 4.5 : IPD/FA-MR-34
Description : Implant replica for use in the laboratory
Reusable : No
Material : AISI 303: Stainless material with excellent mechanical properties.
Type : Analog
ø3.5 : IPD/FA-AN-00
ø4.5 : IPD/ FA-AR-00
ø5.7 : IPD/FA-AW-00
Type : Digital Analog
ø3.5 : IPD/ FA-AN-00/3D
ø4.5 : IPD/ FA-AR-00/3D
ø5.7 : IPD/FA-AW-00/3D
Bottom Screw : IPD/KA-TA-00
Side Screw : IPD/KA-TA-01
Description: Titanium base that allows a prosthetic restoration with a good passive adjustment
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type :Engaging
ø3.5 GH 0.5 : IPD/ FA-IN-00/3D
GH 1.5 : IPD/ FA-IN-02/3D
GH 2.5 : IPD/ FA-IN-04/3D
ø4.5 GH 0.5 : IPD/ FA-IR-00/3D
GH 1.5 : IPD/ FA-IR-02/3D
GH 2.5 : IPD/ FA-IR-04/3D
ø5.7 GH 0.5 : IPD/FA-IW-00/3D
Type : CEREC® Engaging
ø3.5 GH 0.5 : IPD/ FA-IN-00/SI
GH 1.5 : IPD/FA-IN-02/SI
GH 2.5 : IPD/FA-IN-04/SI
Type : Non-Engaging
ø3.5 GH 0.5 : IPD/FA- IN-01/3D
GH 1.5 : IPD/ FA-IN-03/3D
GH 2.5 : IPD/ FA-IN-05/3D
ø4.5 GH 0.5 : IPD/ FA- IR-01/3D
GH 1.5 : IPD/FA-IR-03/3D
GH 2.5 : IPD/ FA-IR-05/3D
ø5.7 GH 0.5 : IPD/FA-IW-01/3D
Type : CEREC® Engaging
ø4.5 GH 0.5 : IPD/ FA-IR-00/SI
GH 1.5 : IPD/FA-IR-02/SI
GH 2.5 : IPD/FA-IR-04/SI
Description : Straight and Angled castable abutment with machined Co-Cr base for casting.
Reusable : No
Material : POM C: Highly resistant thermoplastic material. It leaves no residue.
Type : Straight Engaging
Co-Cr Base ø3.5 : IPD/FA-BN-00
ø4.5 : IPD/FA-BR-00
No Co-Cr ø3.5 : IPD/ FA-HN-00
ø4.5 : IPD/ FA-HR-00
ø5.7 : IPD/ FA-HW-00
Type : Straight Non-Engaging
Co-Cr Base ø3.5 : IPD/FA-BN-01
ø4.5 : IPD/FA-BR-01
No Co-Cr ø3.5 : IPD/ FA-RN-00
ø4.5 : IPD/ FA-RR-00
ø5.7 : IPD/ FA-RW-00
Type : Angled Engaging
Co-Cr Base ø3.5 15° : IPD/ FA-BN-10
25° : IPD/FA-BN-20
ø4.5 15° : IPD/ FA-BR-10
25° : IPD/FA-BR-20
Type : Angled Non-Engaging
Co-Cr Base ø3.5 15° : IPD/ FA-BN-11
25° : IPD/FA-BN-21
ø4.5 15° : IPD/ FA-BR-11
25° : IPD/FA-BR-21
Description : Overdenture abutment for removable prostheses
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : PSD System
ø3.5 GH 1.0 : IPD/FA-LN-01
GH 2.0 : IPD/ FA- LN-02
GH 3.0 : IPD/ FA- LN-03
GH 4.0 : IPD/ FA- LN-04
GH 5.0 : IPD/ FA- LN-05
Type : PSD System
ø4.5 GH 1.0 : IPD/ FA-LR-01
GH 2.0 : IPD/ FA- LR-02
GH 3.0 : IPD/ FA- LR-03
GH 4.0 : IPD/ FA-LR-04
GH 5.0 : IPD/ FA-LR-05
Description : Healing Abutments
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Type :Healing Abutment
ø3.5 GH 1.5 : IPD/FA-DN-01
GH 3.0 : IPD/ FA- DN-03
GH 5.0 : IPD/FA-DN-05
ø4.5 GH 1.5 : IPD/ FA- DR-03
GH 3.0 : IPD/ FA- DR- 05
GH 5.0 : IPD/FA-DR-07
Type : Healing Abutment
ø5.7 GH 3.0 : IPD/ FA- DW- 05
GH 5.0 : IPD/FA-DW-07
Description : Titanium screw for attaching abutments to the implant TPA Pentalobular titanium screw for angled channel
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.
Type : 1.25 Hex Conical Seat
ø3.5 : IPD/FA-TR-00
TiN : IPD/ FA- TR-00/TIN
BLC : IPD/FA-TR-00/BLC
ø4.5 : IPD/ FA- TR-00
TiN : IPD/ FA- TR-00/TIN
BLC : IPD/FA-TR-00/BLC
ø5.7 : IPD/ FA- TR-00
TiN : IPD/ FA- TR-00/TIN
BLC : IPD/FA-TR-00/BLC
Type : TPA Conical Seat
ø3.5 TiN : IPD/ FA- TR-50
ø4.5 TiN : IPD/FA-TR-50
ø5.7 TiN : IPD/FA-TR-50
Description : It allows you to replicate the position of an implant in the impression material to accurately position the implant analog
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : Anodized
Type : Open Tray Coping Engaging
ø3.5 : IPD/FA-PN-06
ø4.5 : IPD/FA-PR-06
ø5.7 : IPD/FA-PW-06
Type : Open Tray Coping Non-Engaging
ø3.5 : IPD/ FA-PN-07
ø4.5 : IPD/ FA-PR-07
ø5.7 : IPD/FA-PW-07
Coping Screw : IPD/ FA-TR-00/C
Type : Open Tray Coping
ø3.5 : IPD/FA-CN-00
ø5.7 : IPD/FA-CW-00
Description : Implant replica for use in the laboratory
Reusable : No
Material : AISI 303: Stainless material with excellent mechanical properties.
Type : Analog
PSD analog : IPD/PS-AR-00
Type : Digital Analog
PSD analog : IPD/ PS-AR-00/3D
Description : The first fully digitized overdenture system that’s 100% compatible with the Locator® system.
Reusable : No
Cap Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Retention Inserts : Nylon: Biocompatible polymer with mechanical properties and wear resistance
Type :Titanium insert
Titanium Cap : IPD/ KA-CL-00
Type : Divergent insert (4 Pack)
Retention insert up to 40º
Low 1lbs (red) : IPD/KA-CL-04
Medium 2lbs (orange) : IPD/KA-CL-05
High 4lbs (green) : IPD/KA-CL-06
Combined Packs

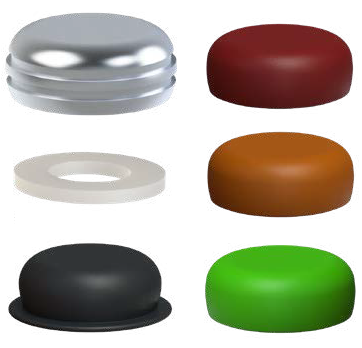

1 Cap + 4 Inserts : IPD/KA-CL-03

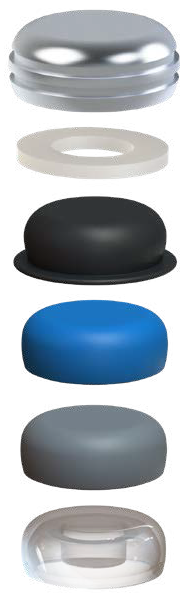

Type : Processing insert (8 Pack)
Process. Insert (black) : IPD/ KA-CL-13
Type : Retention Inserts (8 Pack)
Retention Inserts up to 20º
Low 1.5lbs (blue) : IPD/KA-CL-10
Medium 3lbs (grey) : IPD/KA-CL-11
High 5lbs (clear) : IPD/KA-CL-12
Combined Packs
1 Cap + 4 Inserts : IPD/KA-CL-02
4 Mixed inserts : IPD/KA-CL-01
Description : Overdenture abutment for removable prostheses
Reusable : No
Material : Titanium Grade 5: TAl6V4 alloy. Biocompatible material. Complies with ISO 5832-3.
Treatment : TiN - Antibacterial gold coating that reduces wear, increases screw retention and improves the aesthetics of the abutment within the prosthesis.

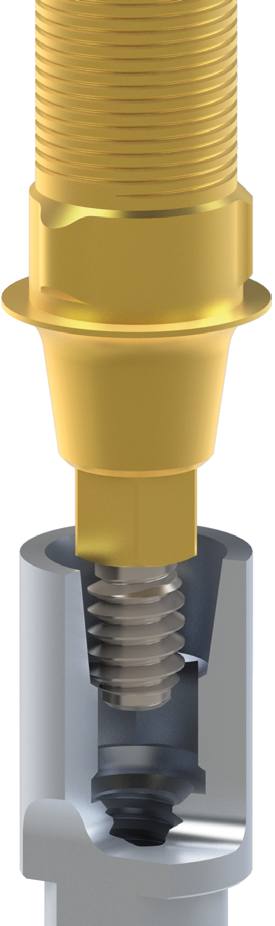

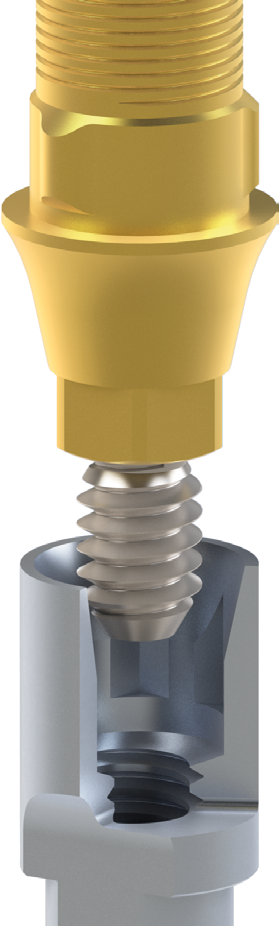

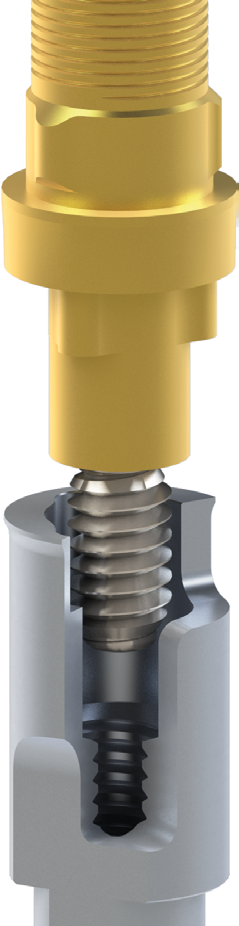

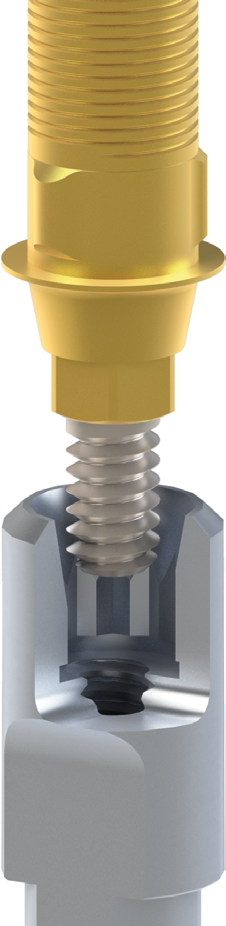

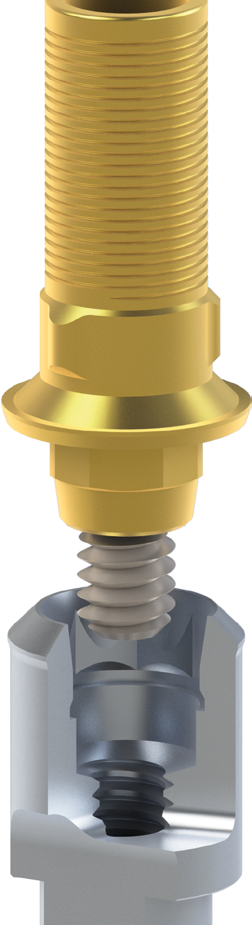

Type :PSD Locators (2 Pack)
For bars 1mm : IPD/PS-LR-00
Type : PSD Locators
The full range of compatible Locators can be found in the IPD PSD System Catalog. (See Below)
Type :PSD Tools
Screwdriver 25mm : IPD/LL-PS-00
The full range of compatible Locators can be found in the IPD PSD System Catalog.
Carrier + scan abut. + coping : IPD/KA-CL-14
Screwdriver + insert extractor : IPD/LL-PS-01
